ZASTOSOWANIE: LAKIEROWANIE PROSZKOWE, ELEKTRO-POWLEKANIE, GALWANIZACJA, ANODYZOWANIE
MAX ODPORNOŚĆ TEMP: 315°C

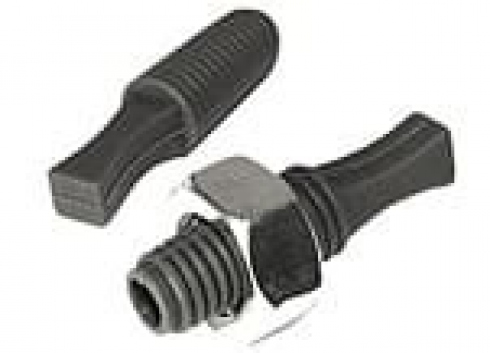

PRZEZNACZENIE: MASKOWANIE OTWORÓW GWINTOWANYCH
Wymiary
| TYP | Średnica A [mm] |
Średnica B [mm] |
Średnica C [mm] |
D [mm] |
E [mm] |
|---|---|---|---|---|---|
| FIRS-04,0-06,0LL | 4,0 | 6,0 | - | - | 25,4 |
| FIRS-06,0-08,0WH | 6,0 | 8,0 | - | - | 25,4 |
| FIRS-07,9-10,3CL | 7,9 | 10,3 | 3,9 | 23,0 | 25,4 |
| FIRS-08,0-10,0BN | 8,0 | 10,0 | 3,9 | 23,0 | 25,4 |
| FIRS-10,0-12,0GY | 10,0 | 12,0 | 6,5 | 23,0 | 25,4 |
| FIRS-10,3-11,9CL | 10,3 | 11,9 | 6,5 | 23,0 | 25,4 |
| FIRS-11,9-14,3CL | 11,9 | 14,3 | 7,7 | 23,0 | 25,4 |
| FIRS-12,0-14,0OR | 12,0 | 14,0 | 7,7 | 23,0 | 25,4 |
| FIRS-14,0-16,0PK | 14,0 | 16,0 | 9,9 | 23,0 | 25,4 |
| FIRS-14,3-15,9CL | 14,3 | 15,9 | 9,9 | 23,0 | 25,4 |
| FIRS-15,9-18,2CL | 15,9 | 18,2 | 11,6 | 23,0 | 25,4 |
| FIRS-16,0-18,0YW | 16,0 | 18,0 | 11,6 | 23,0 | 25,4 |
| FIRS-18,0-20,0GN | 18,0 | 20,0 | 12,9 | 23,0 | 25,4 |
| FIRS-18,2-19,0CL | 18,2 | 19,0 | 12,9 | 23,0 | 25,4 |
| FIRS-20,0-22,5RD | 20,0 | 22,5 | 25,4 | ||
| FIRS-22,2-25,4BK | 22,2 | 25,4 | 15,9 | 23,0 | 25,4 |
| FIRS-22,5-24,0CL | 22,5 | 24,0 | 15,9 | 23,0 | 25,4 |
| FIRS-24,0-26,0LL | 24,0 | 26,0 | 16,9 | 23,0 | 25,4 |
| FIRS-25,4-28,6CL | 25,4 | 28,6 | 16,9 | 23,0 | 25,4 |
| FIRS-26,0-28,0BN | 26,0 | 28,0 | 16,9 | 23,0 | 25,4 |
| FIRS-28,6-31,8WH | 28,6 | 31,8 | 20,6 | 23,0 | 25,4 |
